CAMBIUM NETWORKS

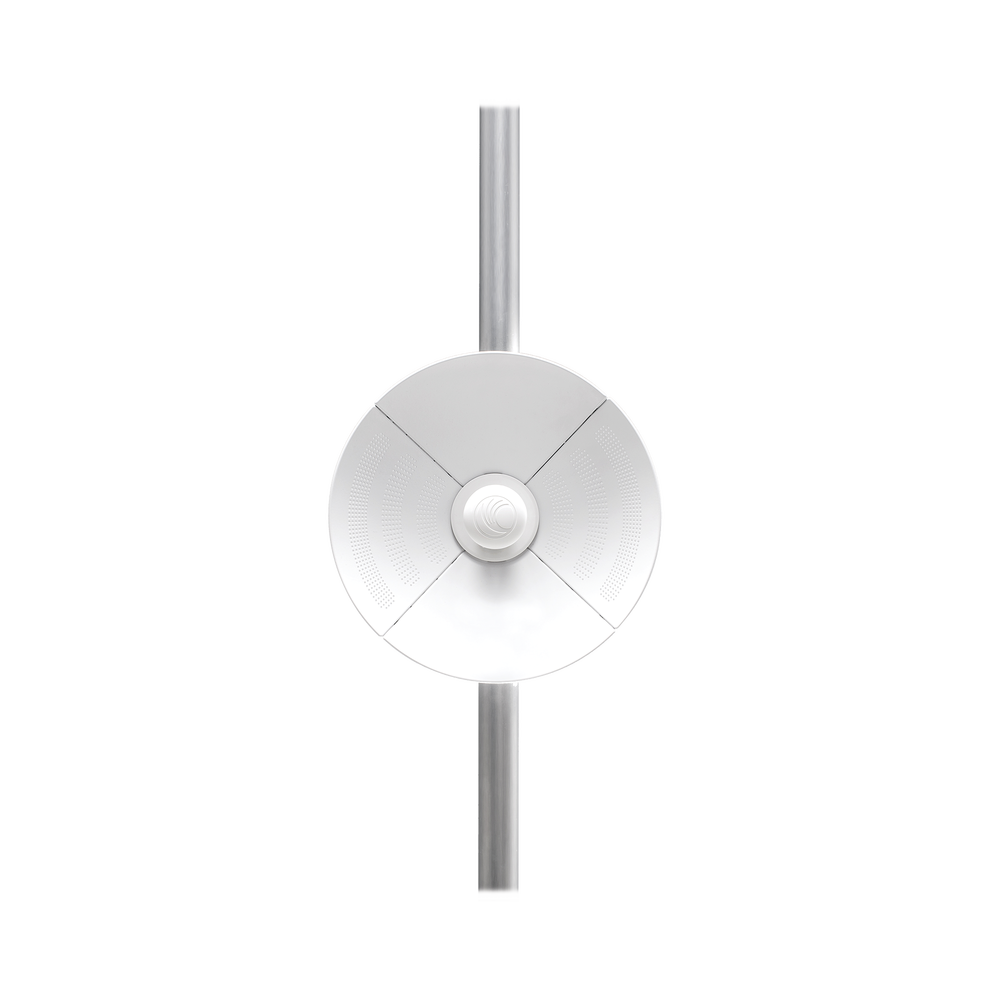

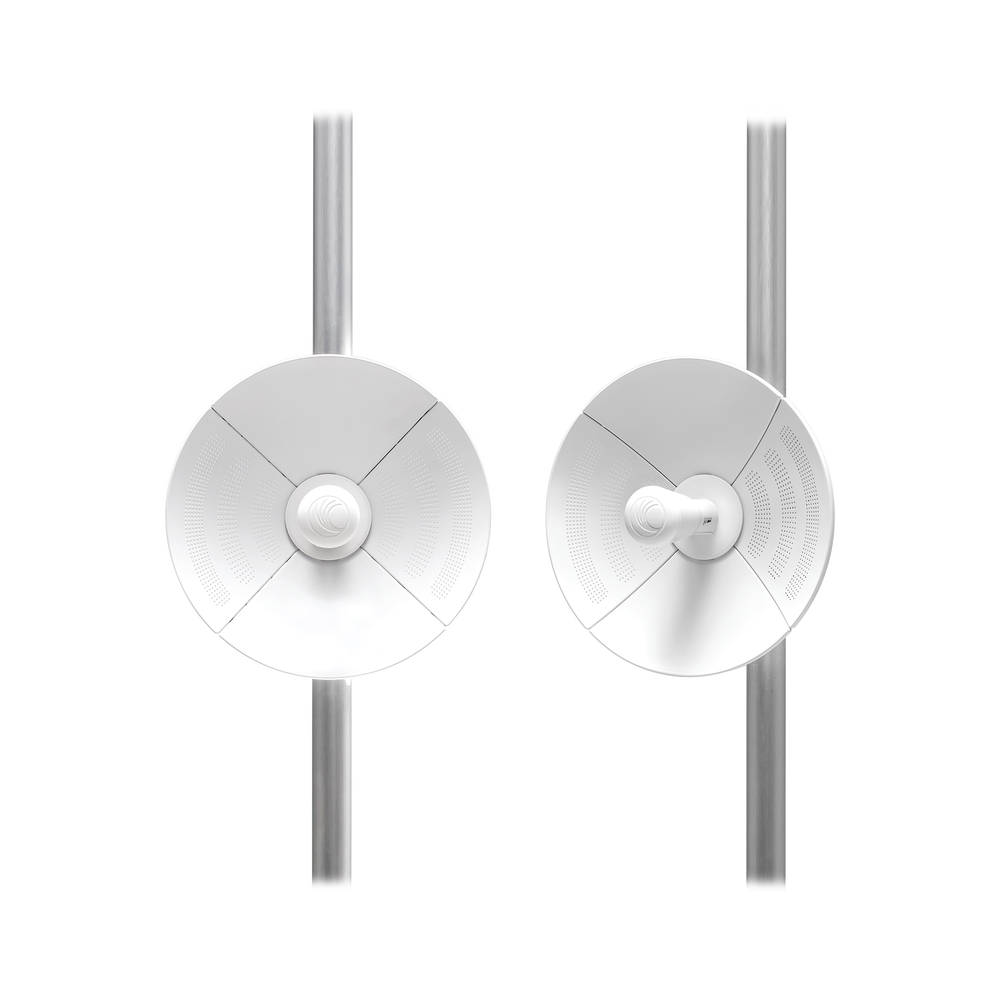

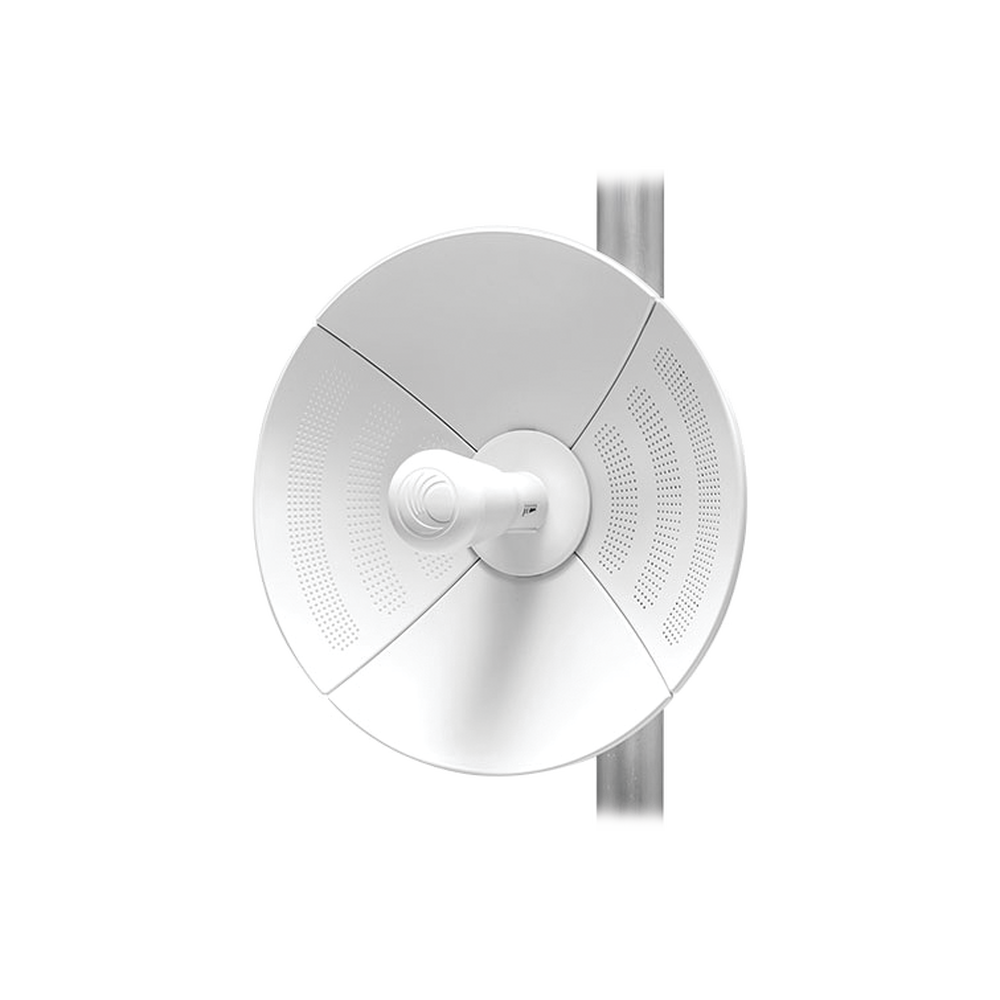

ePMP Force 190 for wireless links in high-interference areas, 4910-5970 MHz, low latency, 22 dBi antenna (C050900C181A)
ePMP Force 190 for wireless links in high-interference areas, 4910-5970 MHz, low latency, 22 dBi antenna (C050900C181A)
Couldn't load pickup availability
ePMP Force 190 for wireless links in high-interference areas, 4910-5970 MHz, low latency, 22 dBi antenna (C050900C181A)
Force 190 - 5 GHz
5
GHz 200
22 Mbps
dBi
|
QUALITY OF SERVICE A powerful multi-level prioritization scheme that can be configured by the network operator to enable delivery of differentiated services. |
SECURITY 128-bit AES encryption, L2 and L3 firewall rules, support for different levels User-friendly, HTTP/SSH support provides enhanced security. |
|
FLEXIBLE MODES OF OPERATION Provides extremely low latency for PTP implementations, highly scalable mode without GPS synchronization and TDD operation for synchronized towers |
ROBUST DESIGN It operates in ambient temperatures as high as 60 degrees and as lows like -30 degrees Celsius |
Main functions
Operation mode: PtP Access Point, PtMP Subscriber, Spectrum Analyzer
MIMO 2x2 OFDM
10/100 Fast Ethernet port
Includes tilt hardware
Integrated 22 dBi satellite dish
| MIMO and modulation | 2x2 MIMO/OFDM |
| Frequency range | 4910 – 5970MHz (defined by country of operation) |
| Maximum power output | 27 dBm combined (defined by country of operation) |
| Revenue | 22 dBi |
| Maximum power consumption | 8 W Maximum, 5 W Typical |
| Exterior protection | IP55 |
| Management | HTTPS, SSH, SNMPv2c |
| Channel spaces | Configurable in 5 MHz increments |
| MAC Layer | Cambium Proprietary |
| Ethernet structure | 10/100/BaseT, rate auto negotiated Cambium PoE (included) |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| VLAN | 802.1Q with 802.1p priority |
| Input voltage | 12 to 30 V |
| Encryption | 128-bit AES (CCMP mode) |
| Antenna Type | Integrated 22 dBi |
| Channel width | 5/10/20/40 MHz |
| Warranty |
3 years |
|
cnMaestro |
LINKPlanner |
cnArcher |
cnHeat |
cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers. |
LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool. LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide. |
Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules. |
Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world. |
- Quality of service to prioritize Triple Play traffic (Video, Voice and Data), High performance and low latency (3-5 ms), Free cloud monitoring with cnMaestro, receive event notifications, Includes PoE power supply and mast mount, Option to configure as point-to-point
Out of stock
MODELO: FORCE-190
