Advanced Coltienda Directional Antenna / 3 ft / 5.9-7.2 GHz / 32 dBi Gain / 45° and 90° SLANT / Includes Jumpers with N-Female to RSMA connector / Mount included

Main Features:

• Up to 32 dBi gain with low VSWR and high port isolation across the entire 5.9-7.2 GHz band
• An antenna that covers 6 and 7 GHz
• Reduced interference with >35 dB minimum front-to-back
• Simplifies on-site installation and ensures "factory-tested" quality
• Connector Type N Female
• The jumpers included with the antenna are compatible with the following radios: C5c, AF5XHAD, R5ACLITE, RP5ACGEN2, LTUROCKET, RP5ACGEN2, EPMP-3K, FORCE300-CSM, C050940C121A, C050910C161A, EPMP-3KL... see more

Model: NP6
Brand: NetPoint

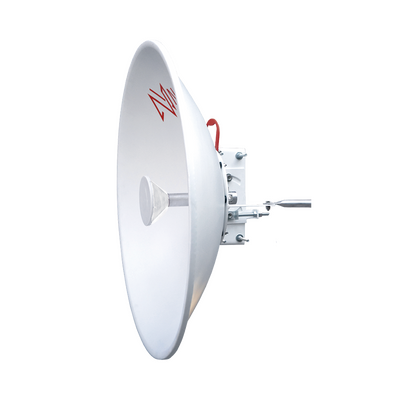

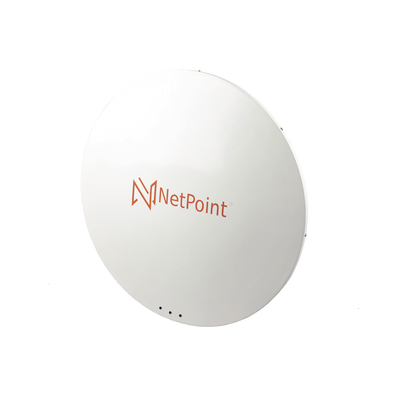

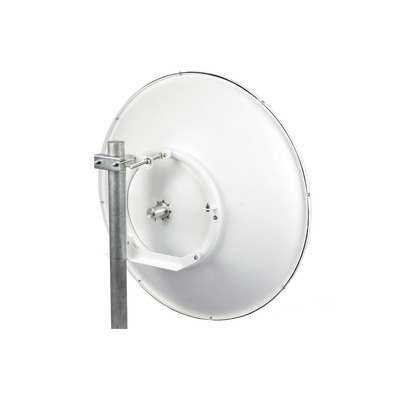

Netpoint 3.11ft DP 5.9-7.2GHz 32dBi Satellite Dish Antenna, Includes NF to SMA-M Pigtail.

NetPoint's NP6-DP3FT high-performance dish antenna is designed to operate at very high performance in both licensed and unlicensed bands, offering excellent gain. The NP6-DP-3FT features dual polarization and an N-female connector, as well as exceptional VSRW performance in the 5.9 to 7.2 GHz operating band. The antenna comes pre-assembled and ready to install, and includes an integrated radome for high performance and reliable operation in the most demanding conditions. This 3-foot dish antenna can be used for PTP backhaul, CPE, and public safety applications.

Compatible Radio Units

The NP6-DP antenna is compatible with the Cambium Networks Force 4600C radio.

Characteristics:

• Up to 32 dBi gain with low VSWR and high port isolation across the entire 5.9 to 7.2 GHz band.
• An antenna that covers 6 and 7 GHz.
• Reduced interference with >50 dB minimum front-to-back ratio.
• Simplifies on-site installation and ensures "factory-tested" quality.
• N female connector type.
• N to RPSMA pigtails included in the box for free!

Specs:
