Advanced 1300 ft (4 km) Drum ADSS Aerieal Cable, Single-mode, 24 Cores Span 200, Anti-rodent, G.652D

ADSS (All Dielectric Self Supported) fiber optic cable is designed for aerial installations between poles. ADSS cables resist the necessary traction thanks to the aramid threads, they do not contain metallic elements.

It also has dielectric armor to protect it from rodents, which makes it the perfect cable for installations on electrical towers or poles.

Note: Free shipping (main cities only, does not apply to extended areas). From 10 reels, a forklift or ramp is required for loading/unloading and/or movement maneuvers.

• Armored Fiber Optic ADSS G.652D Singlemode Anti-rodent Loose Tube
• For aerial, pipe, or direct burial installations
• Outer Sheath: HDPE (High-Density Polyethylene)
• Maximum tension: 7000N
• Anti-tracking (up to 110kV)
• Span (Distance between Poles): 200 meters
• UV and moisture protection
• Minimum Bend Radius: Installation 25D, Operation 12.5D
• Crush resistance: 1000N/10cm
• 24 threads

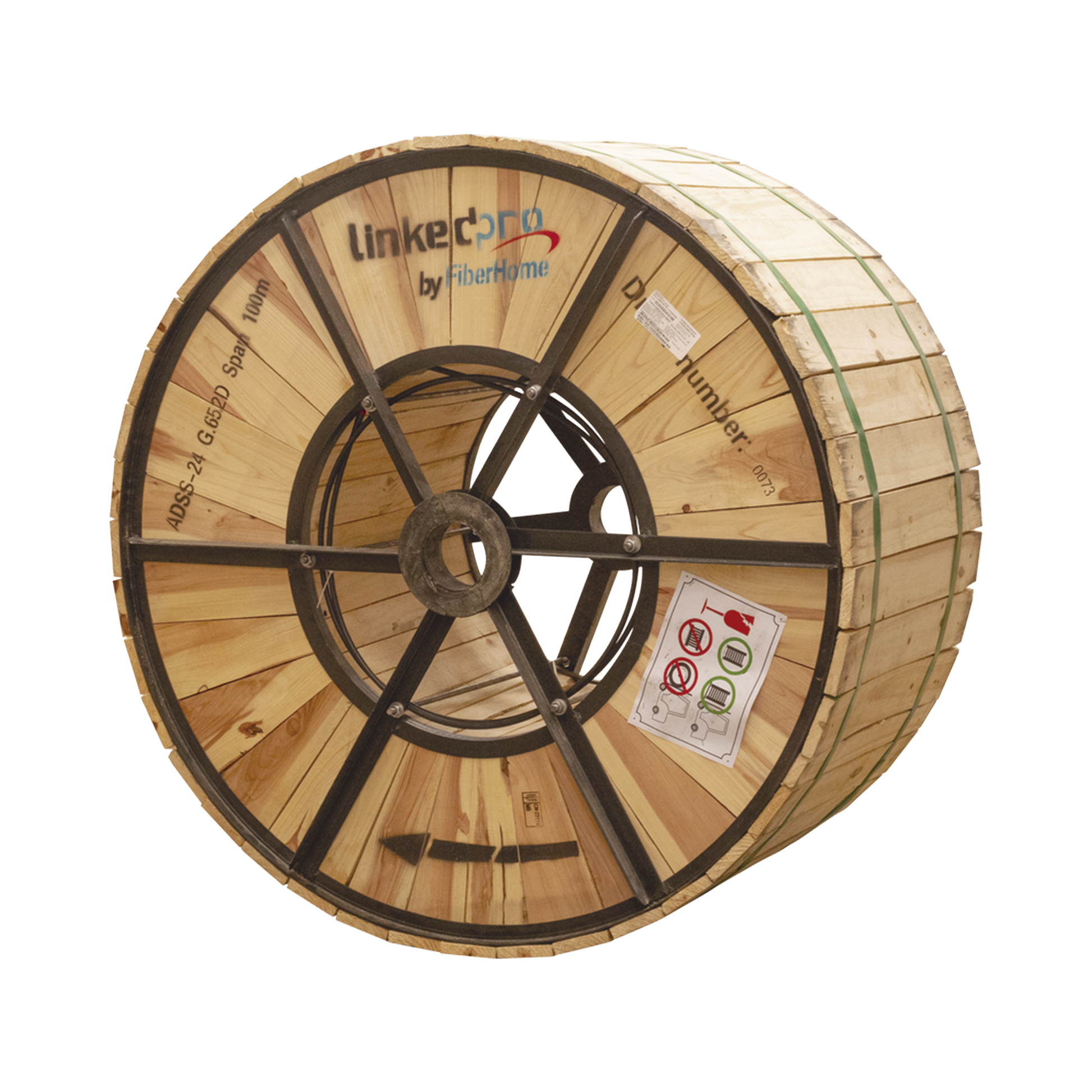

• Price per 13,000 ft (4 km) drum

• Nominal diameter (D): 13.9 mm ± 0.5 mm
• Operating temperature: -20ºC to +65ºC
• Rated weight (kg/km): 160 ± 15kg/km
• Dimensions (in): 61 x 61 x 44
• Dimensions (mm): 1550 x 1550 x 1120
