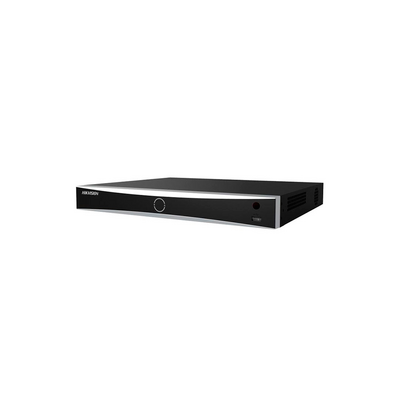

12 Megapixel NVR (4K) / 8 IP Channels / Supports AcuSense Cameras / 2 Hard Drive Bays / 4K HDMI

• Video compression: H.265+ / H.265 / H.264+ / H.264.
• Supports USB mouse to operate (included).
• Supports 2 HDDs up to 10TB. (not included).
• Supports local or remote calendar search.
• Supports ANR technology with HIKVISION IP camera when the network is disconnected.
• Supports DDNS (Hik-Connect, DynDNS, No-IP, etc.).
• Supports Hik-Connect P2P (Hik-Connect).
• IVMS-4200 client software (free).

Processing capacity and network functions:

• Input throughput: 80 Mbps.
• Output throughput: 160 Mbps.
• 1 RJ-45 network port: 10 / 100 / 1000 Mbps. (LAN)
• Maximum total power supply capacity on PoE ports: 80 W.

• Dimensions: 385 x 315 x 52 mm.
• Power supply: 48 Vdc / 15 W (without hard drives).
• Operating temperature: -10°C to 55°C.
• Weight: 3 Kg without HDD.
• Warranty: 2 years.
• Compatible with GAB-VID2-R2 metal cabinet.

Recording and Viewing Functions:

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Dual stream (main stream and sub stream).
• Supports fast forward, slow forward, frame by frame, etc.
• Supports SMART hard drive technology
• Supports multiple recording types, including real-time, manual recording, motion detection, motion detection and alarm, motion detection or alarm.
• Supports cyclic (overwrite) and non-cyclic recording.

• HDMI Output: 4K, 1080p, 720p.
• VGA output: 1080p, 720p.
• Independent HDMI and VGA output.
• Audio Input: 1 Channel.
• Audio Output: 1 Channel.
• Alarm Input: 4
• Alarm Output: 1
• Supports two-way audio (two-way audio).

Recording Resolution per Channel (recommended with H.265):

• 2 Megapixel: 8 Channels @ 30 IPS.
• 4 Megapixel: 8 Channels @ 30 IPS.
• 5 Megapixel: 8 Channels @ 30 IPS.
• 8 Megapixel (4K): 8 Channels @ 20 IPS.
• Synchronous playback on channels: 8 Channels.

• SUPPORTS CAMERAS WITH ACUSENSE (False Alarm Filter):

• With ACUSENSE technology we can avoid false alarms such as movement of trees, animals, etc.
• By activating ACUSENSE technology, it only detects human bodies and vehicles to truly detect important events and thus eliminate false alarms.
• Supports up to 8 channels with ACUSENSE using cameras: DS-2CD3XX / DS-2CD2XX3G2 (which support ACUSENSE).
