COLOMBIATEL

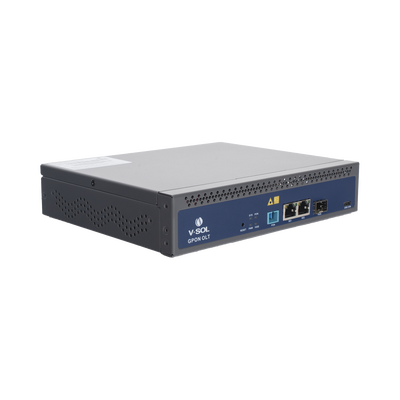

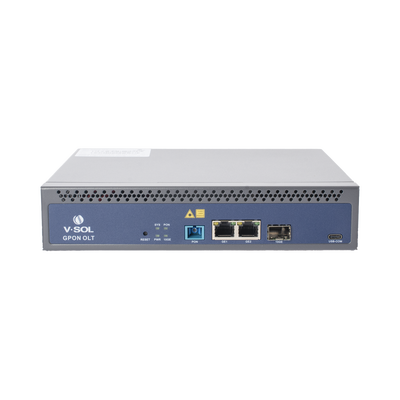

1 GPON port OLT with 3 Uplink ports (2 Gigabit Ethernet ports + 1 SFP/SFP+ port), up to 128 ONUs

1 GPON port OLT with 3 Uplink ports (2 Gigabit Ethernet ports + 1 SFP/SFP+ port), up to 128 ONUs

$1.590.696 COP
$1.680.520 COP $1.590.696 COP
Sale Sold out
Shipping calculated at checkout.

Main Features:

  • Management via: CLI, SNMP, WEB and Telnet
  • Online ONU Configuration and Management
  • Management from mobile APP
  • Up to 1.25 Uplink / 2.5 Gbps Downlink per PON port
  • Only includes 1 AC power supply... see more

Model: V1600-GS
Brand: V-SUN

  • V1600-GS GPON OLT products are desktop/tray-mounted. The OLT features small size, convenience, flexibility, ease of deployment, and high performance. It is suitable for deployment in compact room environments. The OLT can be used for triple-play applications, IP cameras, enterprise LANs, and ISPs.

" 1-port GPON V-SOL OLT "

  • Up to 128 ONUs maximum.
  • 2 Uplink RJ45 Gigabit ports.
  • 1 SFP/SFP+ Uplink port.
  • GPON.
  • Triple Play.

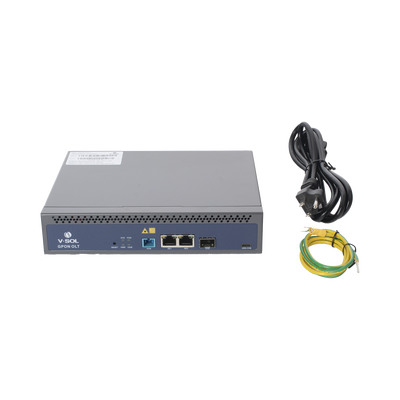

  • Includes AC power supply.
  • Up to 4,096 Vlans.
  • Distance 20 km at the PON port .
  • Local management software .
  • Remote management software .
  • Management from mobile APP .

Main features:
  • Dimensions: 224*199*43.6mm (length × width × height).
  • Applications: Data, Video Surveillance, IP Telephony, CATV.
  • Online ONU configuration and management.
  • Bandwidth per PON port: Upstream 1.244Gbps, Downstream 2.488Gbps.
  • Supports QoS.
  • Wavelength: TX: 1490 nm & RX: 1310 nm.
  • User-friendly management of: EMS / Web / Telnet / CLI / SSH.
  • CLI command style similar to conventional manufacturers.
  • Management APP.
Physical and Electrical Characteristics:

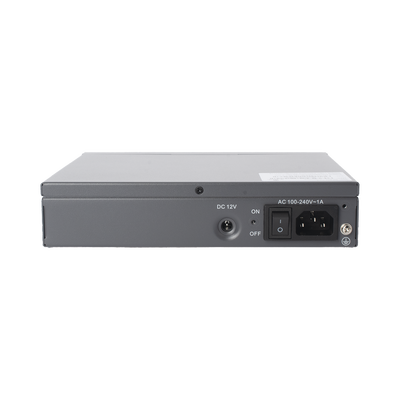

  • Power supply ( Includes AC power supply )
  • Direct Current: DC 12V 2.5A
  • Weight: 1.07 Kg.
  • Operating temperature: -0 to 55° C.
Network Features:
  • 1 GPON Class C++ SC/UPC ports.
  • 2 Uplink RJ45 10/100/1000 Mbps ports.
  • 1 SFP/SFP+ Uplink port.
  • 1 Console port.
  • Split ratio 1:128.
  • Supports VLAN tag/Untag, VLAN transparent transmission, QinQ.
  • QOS

NOTE:

  • The PON connector comes embedded in the equipment and cannot be removed.

  • No additional GPON module required.

  • Does not include SFP modules for UpLink ports.

FTTX network design.
