RB1100AHx4 Dude Edition, 13 Gigabit Ports, 60GB M.2 Storage for Dude Database

Name: RB1100AHx4 Dude Edition, 13 Gigabit Ports, 60GB M.2 Storage for Dude Database
Brand: MIKROTIK
SKU: RB1100AHX4-DE
Price: 2309255.00 COP
Availability: InStock

$2.309.255 COP

~~$2.525.747 COP~~ $2.309.255 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

RB1100AHx4 Dude Edition, 13 Gigabit Ports, 60GB M.2 Storage for Dude Database

The new Dude Edition RB1100AHx4 features an Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for peak throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster than any previous RouterBOARD device (up to 2.2Gbps with AES128).

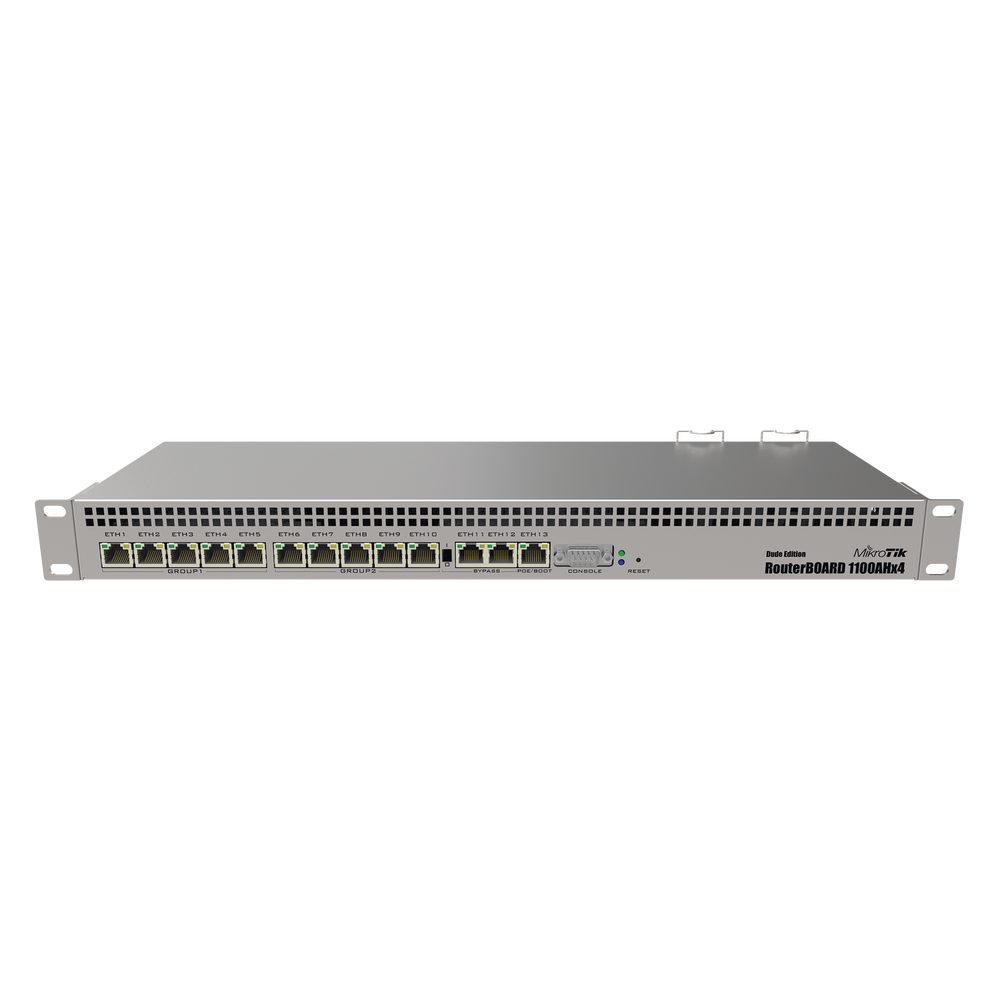

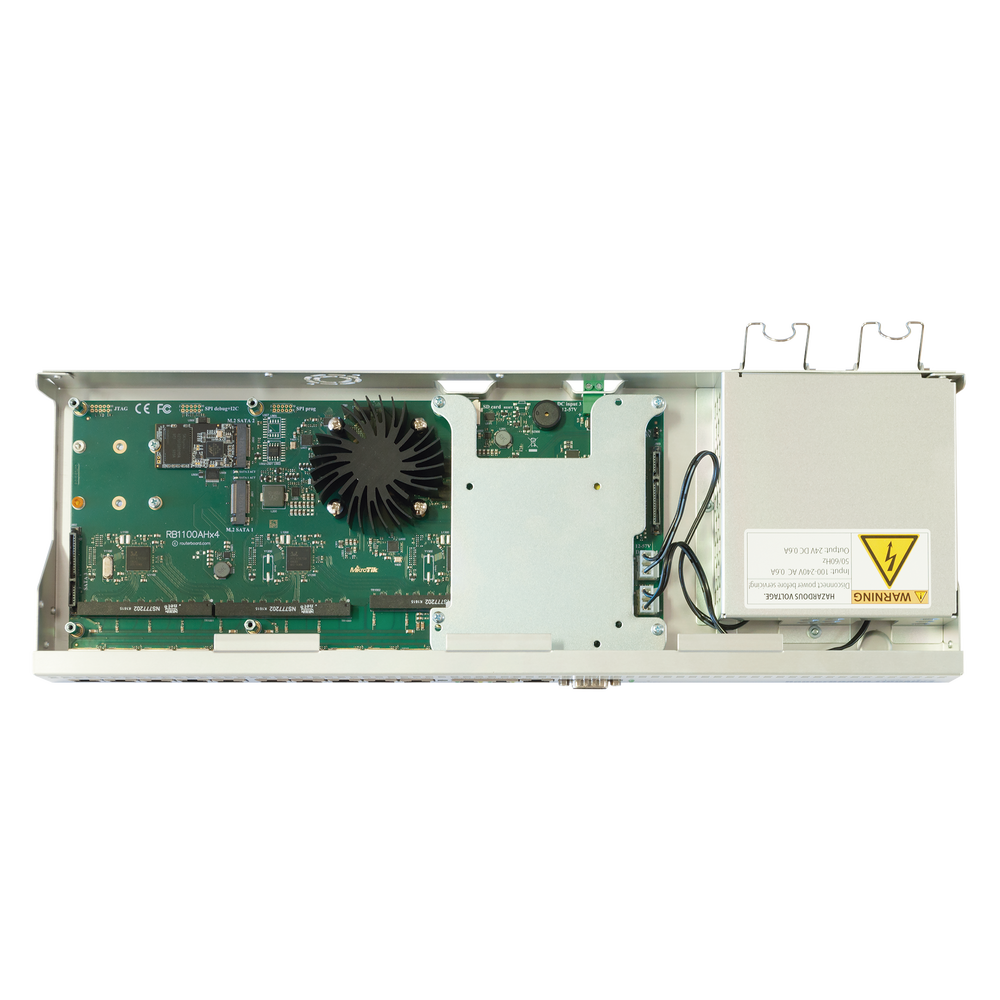

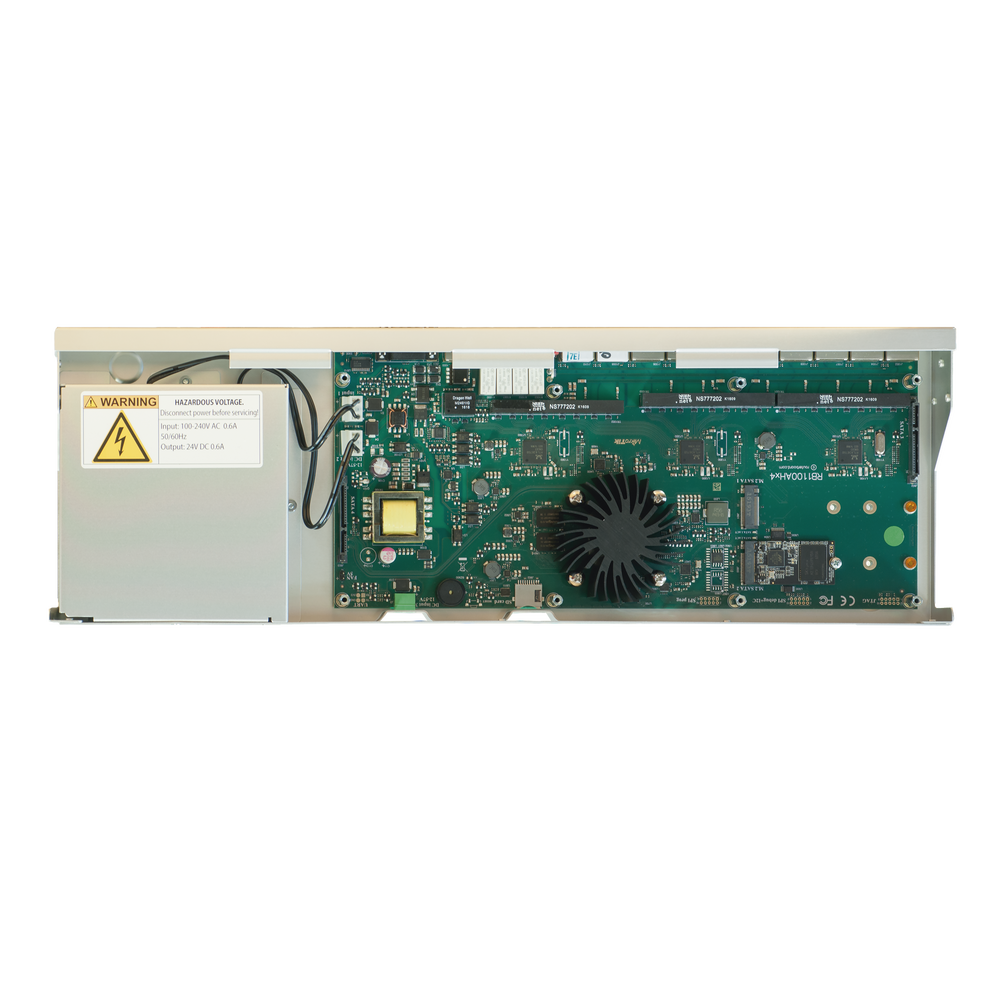

The unit comes with a 1U rackmount enclosure, 13x Gigabit Ethernet ports, an RS232 serial port, and dual redundant power supplies (with -48v DC telecom power and 802.3at/af). The RB1100AHx4 Dude Edition features multiple high-speed storage connectors (two SATA and two M.2) for running a Dude database, proxy caching, or other storage-intensive feature. A 60GB M.2 drive is included.

Specifications

Details
Product code	RB1100Dx4
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	444 x 148 x 47 mm
License level	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C

Powering

Details
PoE in	802.3af/at
PoE in input voltage	20-57 V

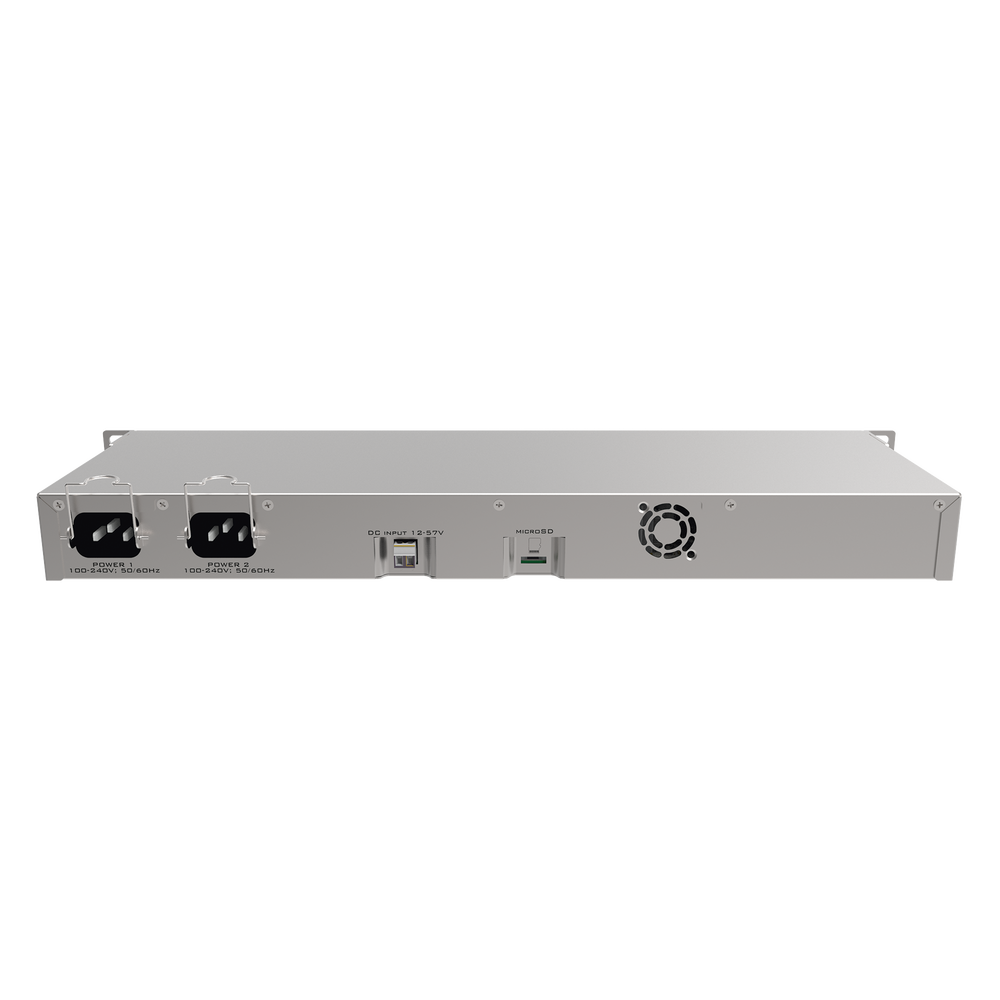

Number of AC inputs	2
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input voltage	-48, 20-57 V
Maximum power consumption	33 W
Max power consumption without attachments	25 W

Ethernet

Details
10/100/1000 Ethernet ports	13

Peripherals

Details
Extended storage	60GB M.2 SSD included
M.2 slots	2
Memory card type	microSD
Memory Cards	1
SATA ports	2x SATA3
Serial port	RS232

Other

Details
Current Monitor	Forks
PCB temperature monitor	Forks
Voltage Monitor	Forks

Ethernet test results

RB1100Dx4		AL21400 1G all port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	606.5	7,365.3	1,736.4	7,112.3	5,509.7	2,821.0
Bridging	25 bridge filter rules	606.5	7,365.3	1,107.8	4,537.5	1,153.2	590.4
Routing	none (fast path)	606.5	7,365.3	1,736.4	7,112.3	5092.3	2,607.3
Routing	25 simple queues	606.5	7,365.3	933.6	3,824.0	960.3	491.7
Routing	25 IP filter rules	543.7	6,602.7	561.8	2,301.1	564.6	289.1

All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
