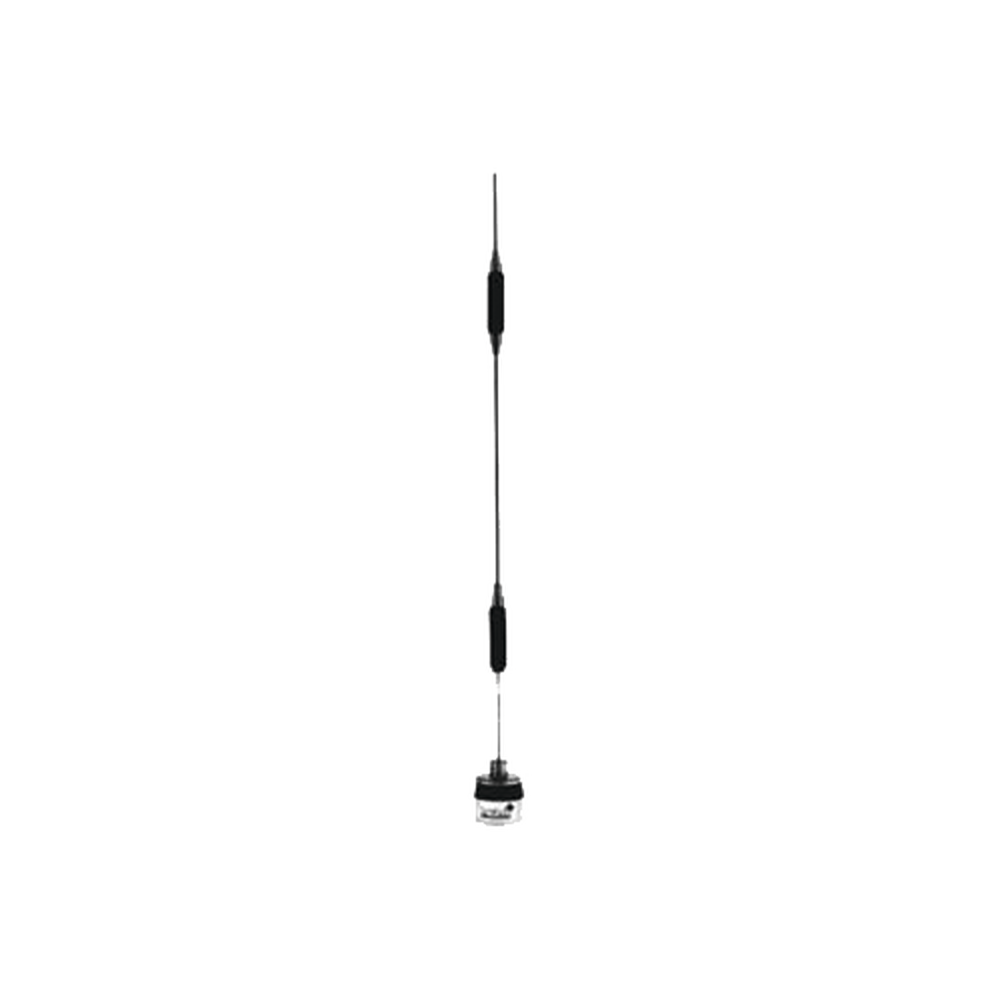

Heavy Duty Low Profile Case Antenna, 806-866 MHz, 5 dB

Heavy Duty Low Profile Case Antenna, 806-866 MHz, 5 dB

Features

• Low profile double-sealed housing for maximum weather-proofing
• Plated fittings for superior performance and durability in the toughest environments

• Model: MUF8005
• Frequency Range: 806-866 MHz
• Factory Tuned Frequency: 815 MHz
• Gain: 5 dB
• Rod/Coil Type: Trilinear/Closed

• Maximum Power: 200 watts
• Nominal Impedance: 50 ohms
• VSWR: < 1.5:1 Radiator
• Material: .100” diameter stainless steel
• Optional Spring: Stainless steel Phasing
• Coil Housing: Low profile molded polymer jacket with copper, nickel and chrome plated bushing
• Base Coil Housing: Low profile molded polymer with copper, nickel and chrome plated bushing
• Antenna Type: 3 dB: 5/8 wave over a 1/4 wave 5 dB: 5/8 wave over a 1/4 wave
